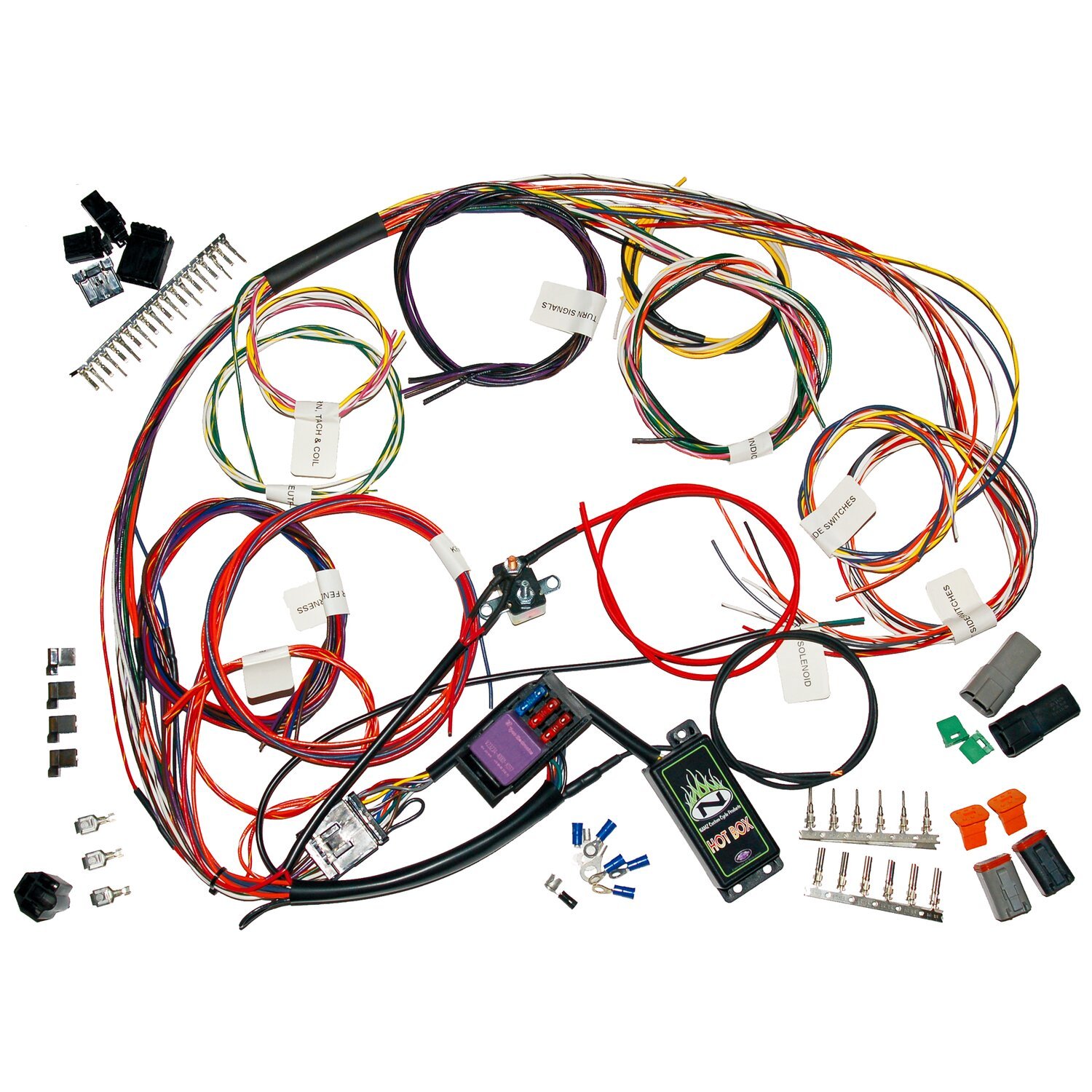

NAMZ, complete custom bike main wiring harness

Used as H-D style universal base to re-wire most carbureted OEM H-D models or set up a custom project. Works with any stand alone, Evo or Twin Cam ignition system. Designed to operate with a two-position key switch. A 3-position ignition switch with (car-like) key start can be used with a simple wiring modification. Wiring can be a challenge for a non-specialist, so it is therefore recommend having a professional do the installation.
Includes following:
- Amber running light and turn signal functions to the front turn signals
- Run, brake and turn signal functions for the rear turn signals
- OEM color-matching wiring with 11-second self canceling turn signal module
Used as H-D style universal base to re-wire most carbureted OEM H-D models or set up a custom project. Works with any stand alone, Evo or Twin Cam ignition system. Designed to operate with a two-position key switch. A 3-position ignition switch with (car-like) key start can be used with a simple wiring modification. Wiring can be a challenge for a non-specialist, so it is therefore recommend having a professional do the installation.
Includes following:
- Amber running light and turn signal functions to the front turn signals
- Run, brake and turn signal functions for the rear turn signals
- OEM color-matching wiring with 11-second self canceling turn signal module
- Fuse block holds a full size, commonly available & replaceable starter relay and (3) ATO fuses
- A 30-Amp circuit breaker is installed and is ready for any regulator/charging system.
- Oil, neutral, high beam, and turn signal indicator wiring
- Color matching handlebar switch wiring as found on 96-13 non-Touring models.
- Headlight wiring with headlight socket and terminals
- Front turn signal connectors and terminals
- Rear fender harness with connectors and terminals
- Key switch wiring with ring terminals
- Coil wire with ring terminals, tachometer, horn, oil sending unit, brake switch and neutral switch wiring with terminals
- Sections of 3/16", 1/4", 3/8" and 1/2" ID heat shrink included
- Heavy gauge 12 (+) power and (-) ground wires with terminals for battery connection.
Note: This harness was updated in 2026. In effect zero changes, but it now has 6 wires for the front turn signals instead of 4. Left turn, right turn, running light and ground both left and right. This was done for the riders that want to use white to amber switchback front LED turn signals. Also provided is a 6-position connector for the front signals instead of the 4-position.
