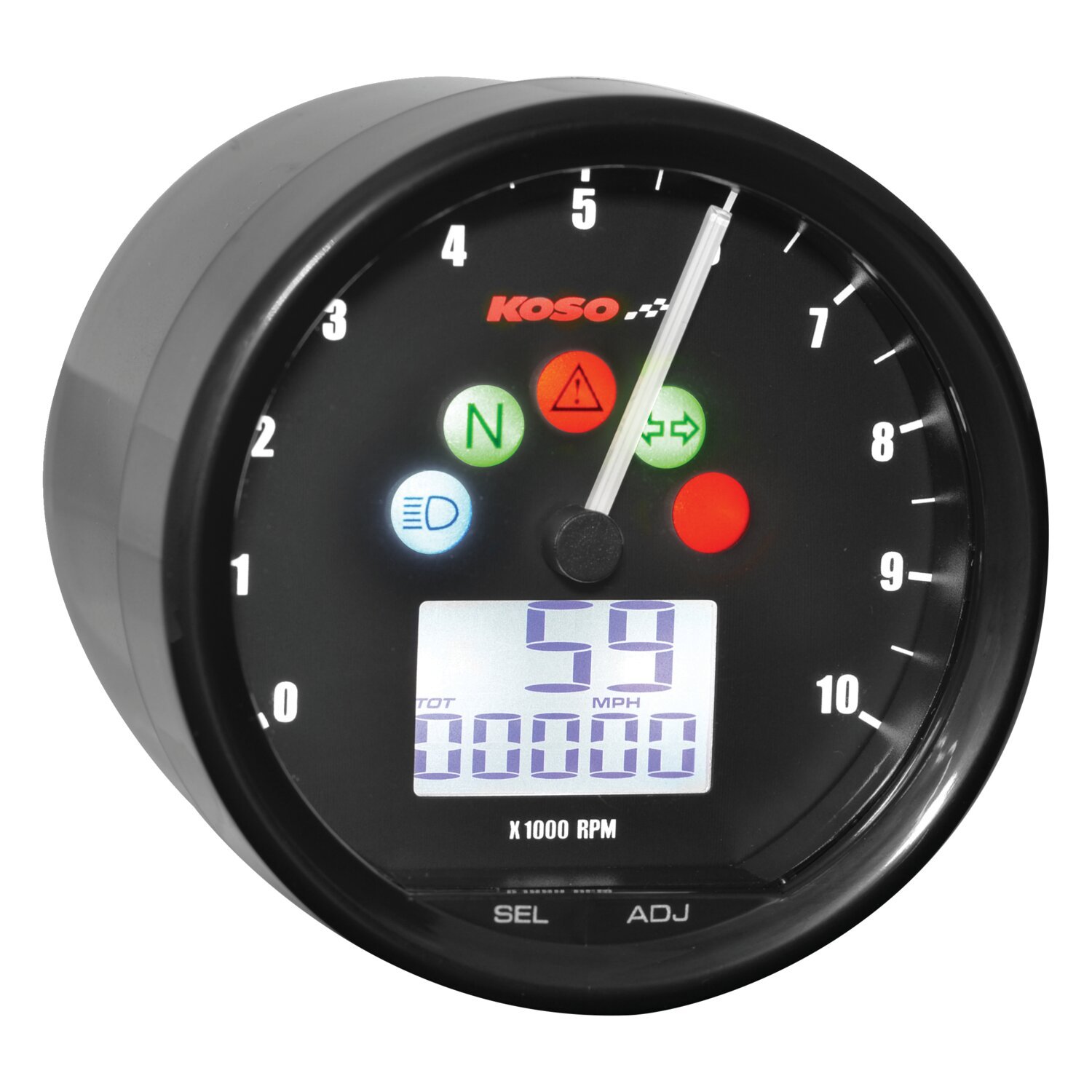

KOSO, D64 multifunctional speedo/tachometer, Black

Black with black face. This ABE/KBA approved 64mm diameter 'multimeter' instrument has it all: Speedometer, tachometer, trip meters, indicator lights, fuel gauge, shift light, clock and more. A great solution for an all-in-one instrument for bikes where basic is King. Stepper motor driven to better resist vibrations.
- 12V DC
- Speedometer: 0-360 kmh (0-225 mph) switchable
- Display impulse: <0.5 seconds
- Odometer display range: 0-99999 km (miles)
- Trip meter A/B display range: 0-999.9 km (miles)
- Reset automatically after 0-999.9 km (miles)
- Trip meter unit: 0.1 km (miles)
- Tire circumference setting unit: 1 mm
- Sensor points: 6
- Tachometer display range: 0-10.000 rpm
- Shift light adjustment range: 8.000-10.000 rpm
- Adjustable per: 100 rpm
- Warning (shift light) Light on (F-OFF)
- Flash (F-ON)
- RPM signal setting
- Setting range: 0.5, 1-24
- RPM pulse range: Hi-Act (positive), Lo-Act (negative)
- Indicator lights: Turn signal (green), Warning light (red), Neutral (green), High beam (blue), Shift light (red)
- Fuel gauge display range: 6 levels (20% each)
- Fuel gauge settings: 100 Ohm, 250 Ohm, 510 Ohm, 1200 Ohm, SW, User
- Clock 24h
- Backlight brightness: 1-5 levels (dark to light), each level is 20%
- Temperature range: -10 - 60 ° C (14 140 ° F)
- Standard JIS D 0203 S2
- Includes passive speed sensor: BF019005
- Dimensions approximately: 68.3 bezel diameter x 64.6 built-in diameter x 54 mm built-in depth
- Weight 127 gram
- ABE/KBA approved
- Complete with installation hardware kit, brackets and instructions
Note: Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
