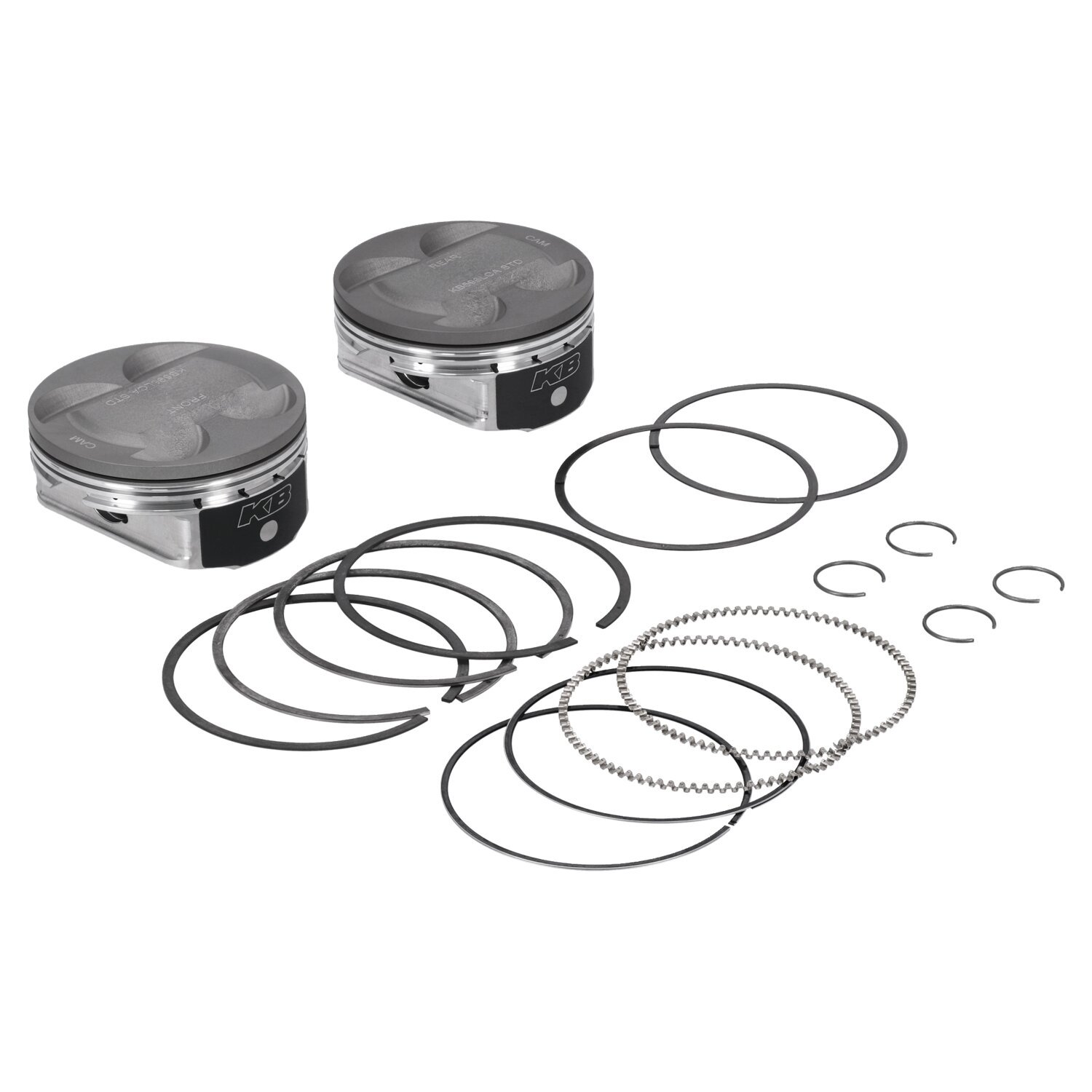

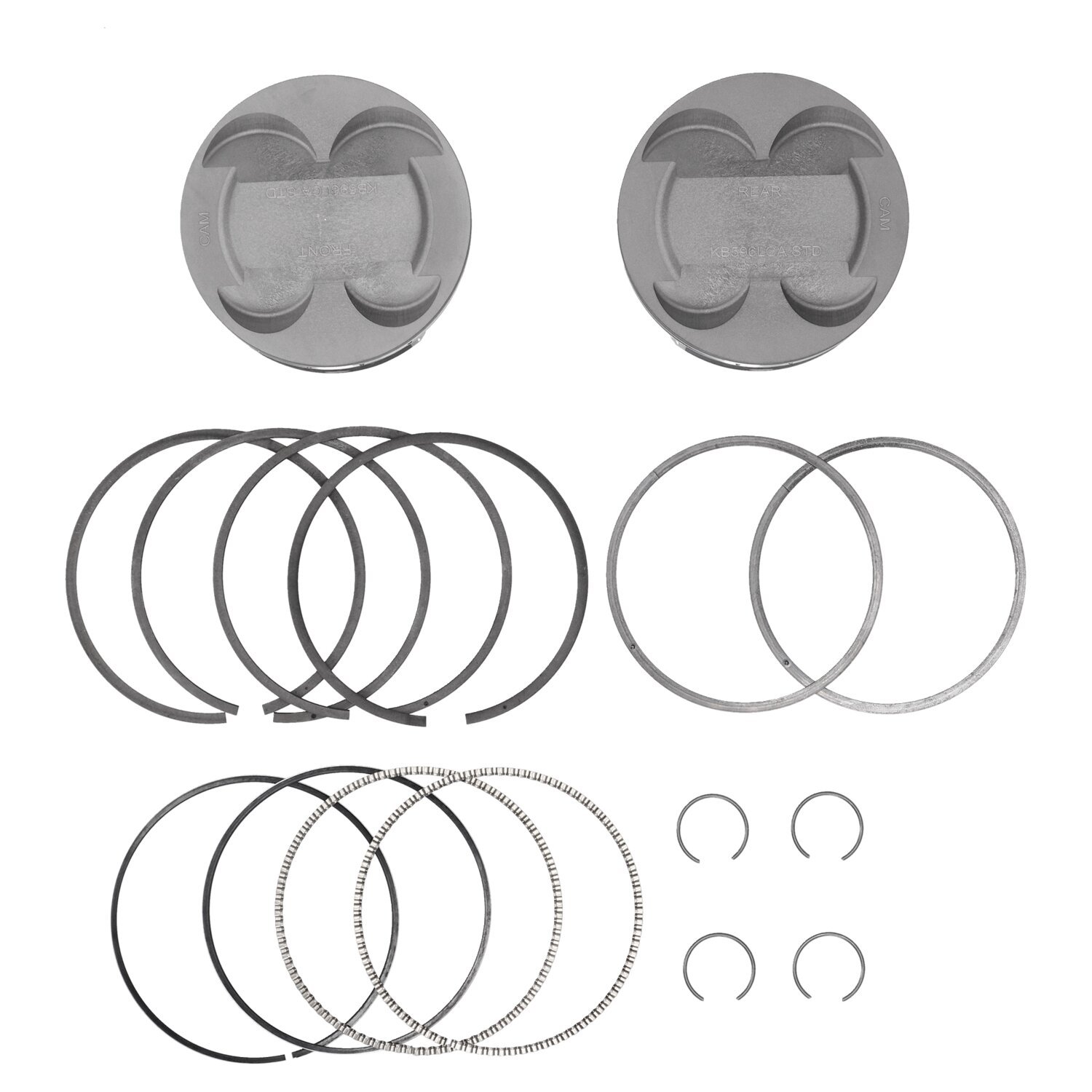

KB, M8 114"/117" to 128" big bore conversion piston kit. STD
Prece ir pieejama pie piegādātāja. Piegādes termiņu precizēsim pirms apmaksas.
Pieprasīt cenu
Paldies! Atbildēsim 1 darba dienas laikā.
Apraksts
Forged Super Duty series for the Milwaukee Eight 114" and 117" engine for a 128" big bore conversion. Designed to work with both oil/water cooled engines and up to 3mm larger valves. With hard anodized crown and top ring groove to reflect heat and prevent ring to groove 'micro-welding'. The Line2Line abradable self-lubricating powder coating technique allows zero tolerance installation, final tolerance will be 0.003". The piston creates its own perfect tolerance during run-in, the coating automatically gives the tightest possible & perfect piston to cylinder fit for no piston rock and best possible ring seal.
Note: Fits 114/117" M8 engines with stock 4.5" stroke. Aftermarket 4.25" bore cylinders are required. For up to 3mm larger valves.
- Compression ratio: 11.7:1
- Engine displacement: 128"
- Bore: 4.25"
- Stroke: 4.5"
- Ring Pack: 1.5mm, 1.5mm, 3.0mm
- Top land: 0.23
- Pin Number: .927x2.250x.180c-SCR415H
- Pin type: Floating
- Pin Diameter: 0.927"
- Lock: BR8894-1
- Compression height: 1.083"
- Crown type: Dome
- Crown (cc): -2.5
- Alloy: Forged 4032 alloy
