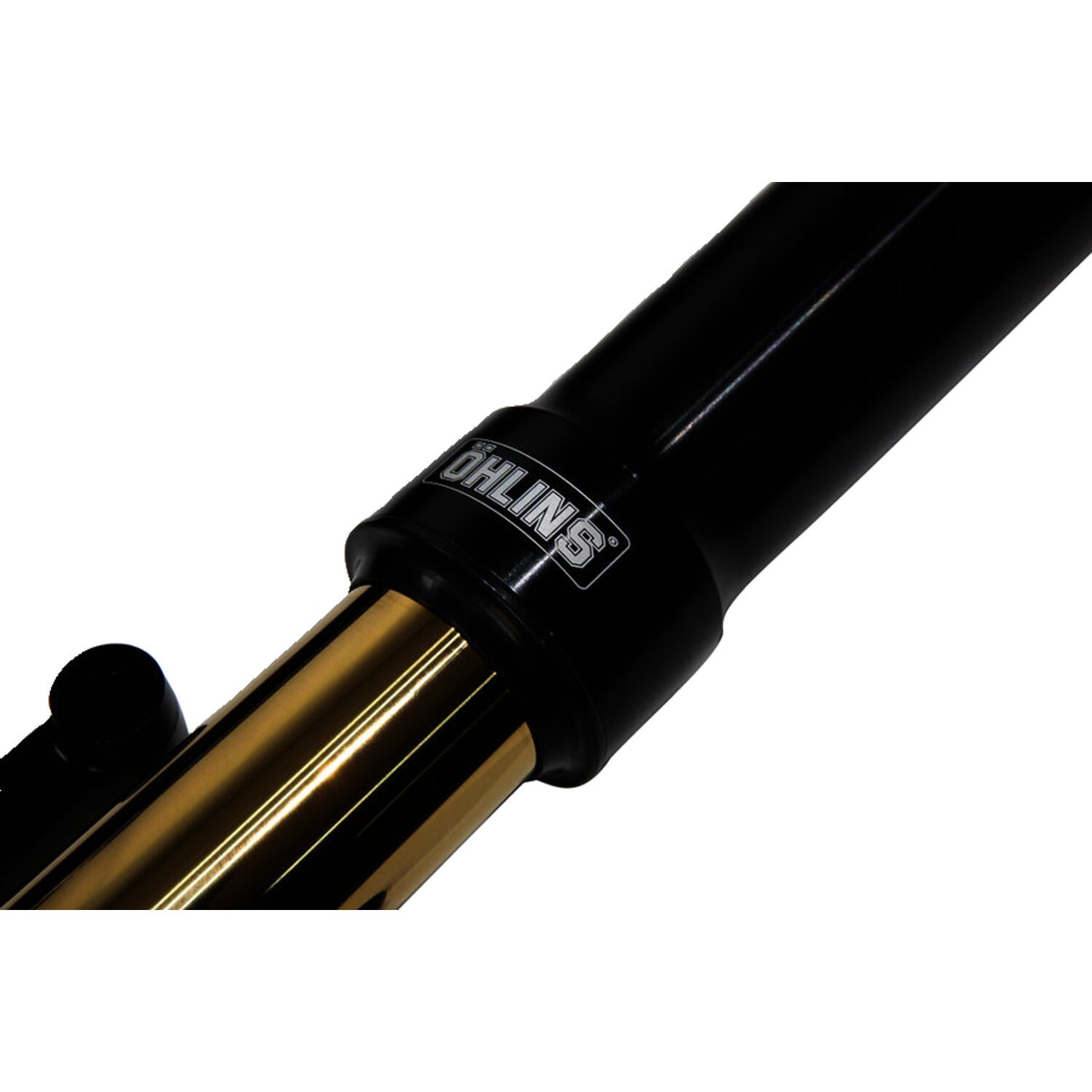

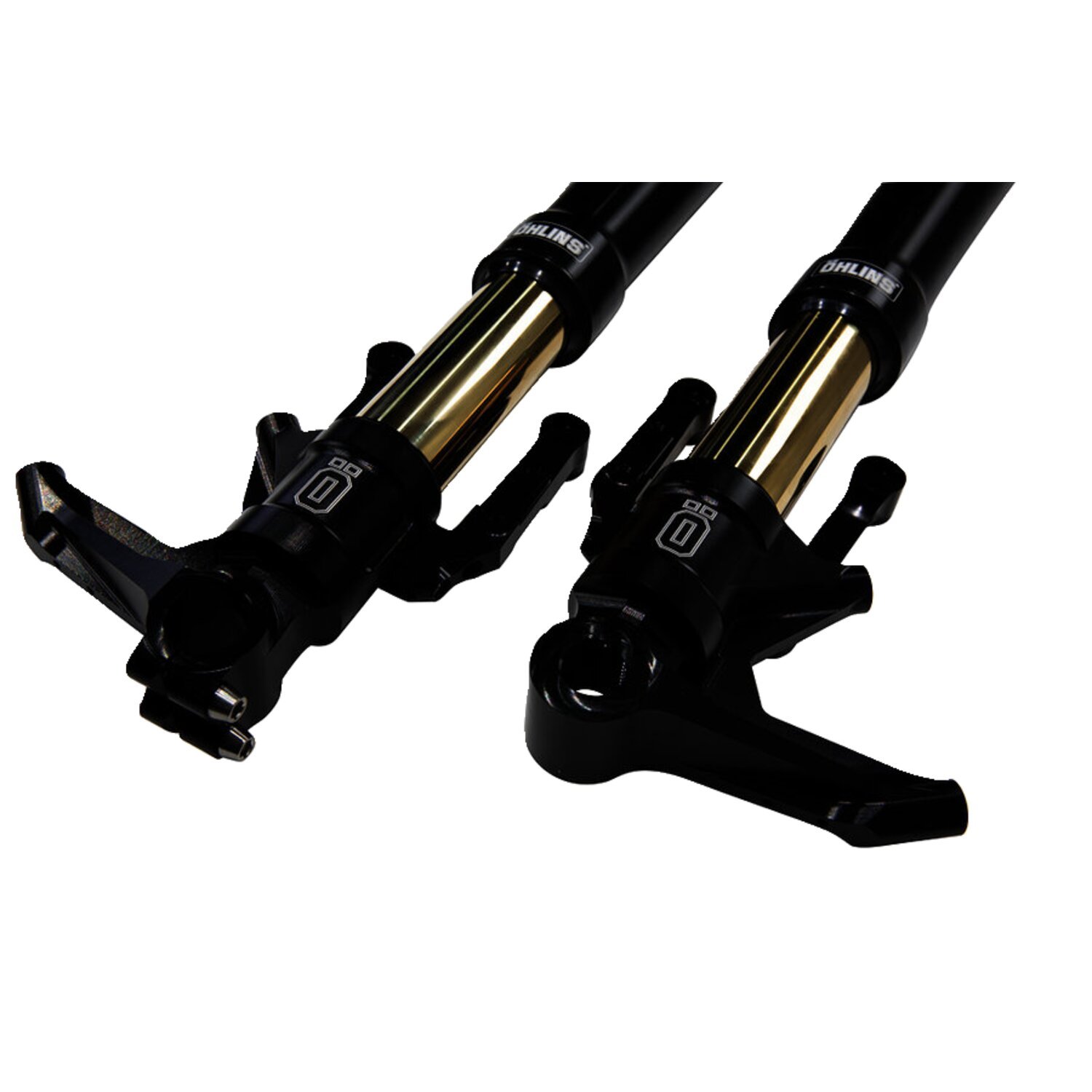

Öhlins, Road & Track 740mm Blackline Fork Legs, Matte

This Öhlins FGRT 307 American V-Twin 48 Blackline inverted / upside down front fork leg kit is a direct upgrade replacement for late model Tourings. Set up and model specific built with a weight- and stress-optimized fork bottom design to accommodate the heavy Touring models. Inside the 30mm piston NIX-technology is used with its separated compression and rebound functions into each fork legs. This allows precise adjustments for improved stability, with easy access for all adjustments at the top caps. The inner tubes are gold titanium nitrate coated which drastically reduces friction. It will increase grip, bump absorption and performance which gives better comfort, tire feel and brake support with allround improved road holding. This front end gives excellent performance and will improve your overall riding experience on any road or track surface.
- Plug & Play for CVO models with an upside down fork and the OEM radial Brembo caliper
- 100mm mount hole distance for stock H-D radial caliper
- NIX technology: Öhlins 30mm cartridge kit with compression and rebound adjustable, with rebound in one leg and compression in the other
- Easy access to adjustments at the top caps
- Bagger Racing-inspired fork bottom design
- 48mm gold titanium nitrate coated fork tubes
- Reduced friction
- Improved grip, bump absorption and performance
- Length: 740 mm
- Stroke: 117 mm
- Rate N/mm: 13 N/mm
- Position: front
- Mounted spring: 08444-13
- Spring series: 08444-Serie
- Recommended oil: 01309
- Packing included: with spring Set 12 N/mm and 14 N/mm
- Oil level mm: 170mm
- Packaging unit: kit
Note: With approval. Check your local MCS dealer or the MCS sales department for exact type of approval and validity on bike model and years on the test report.
