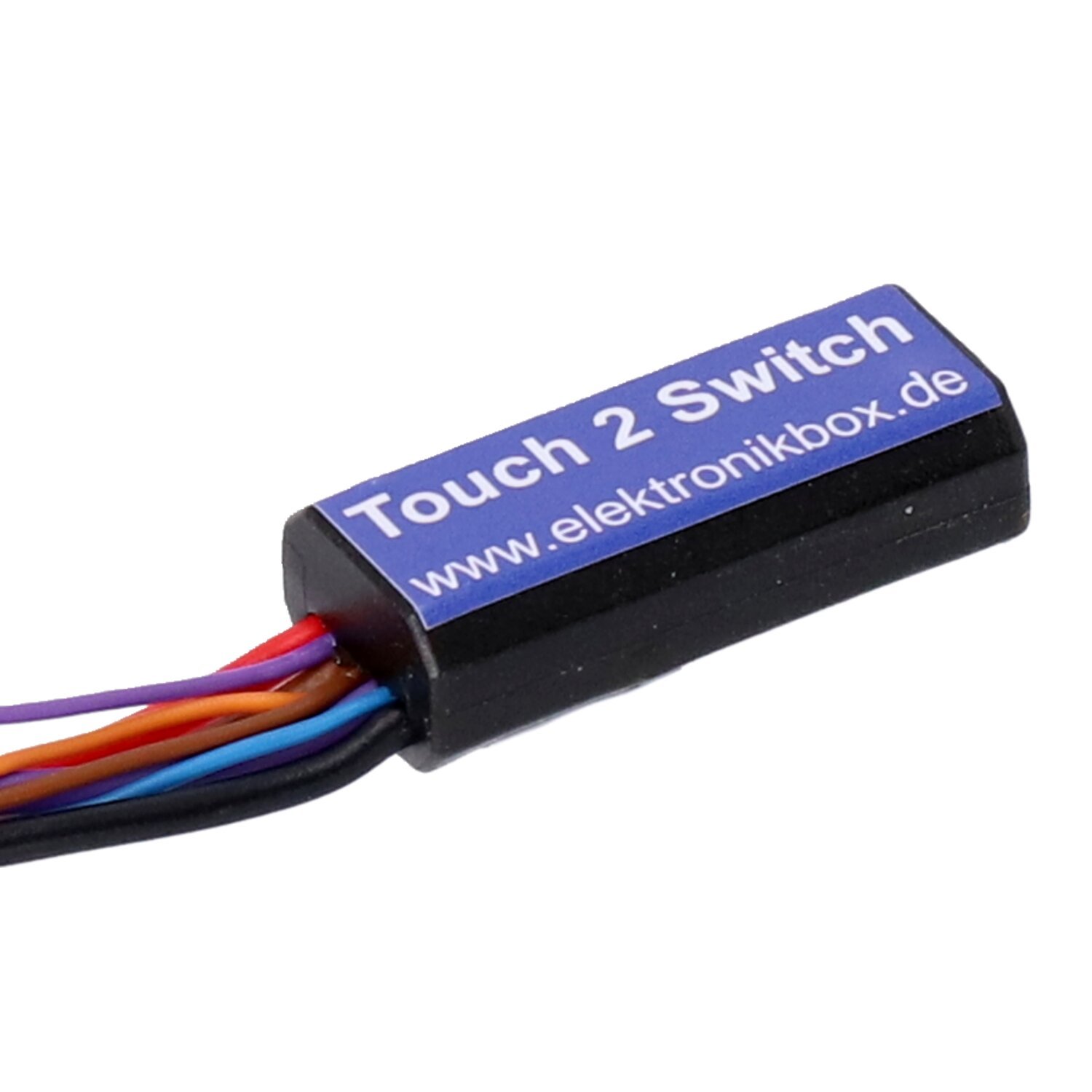

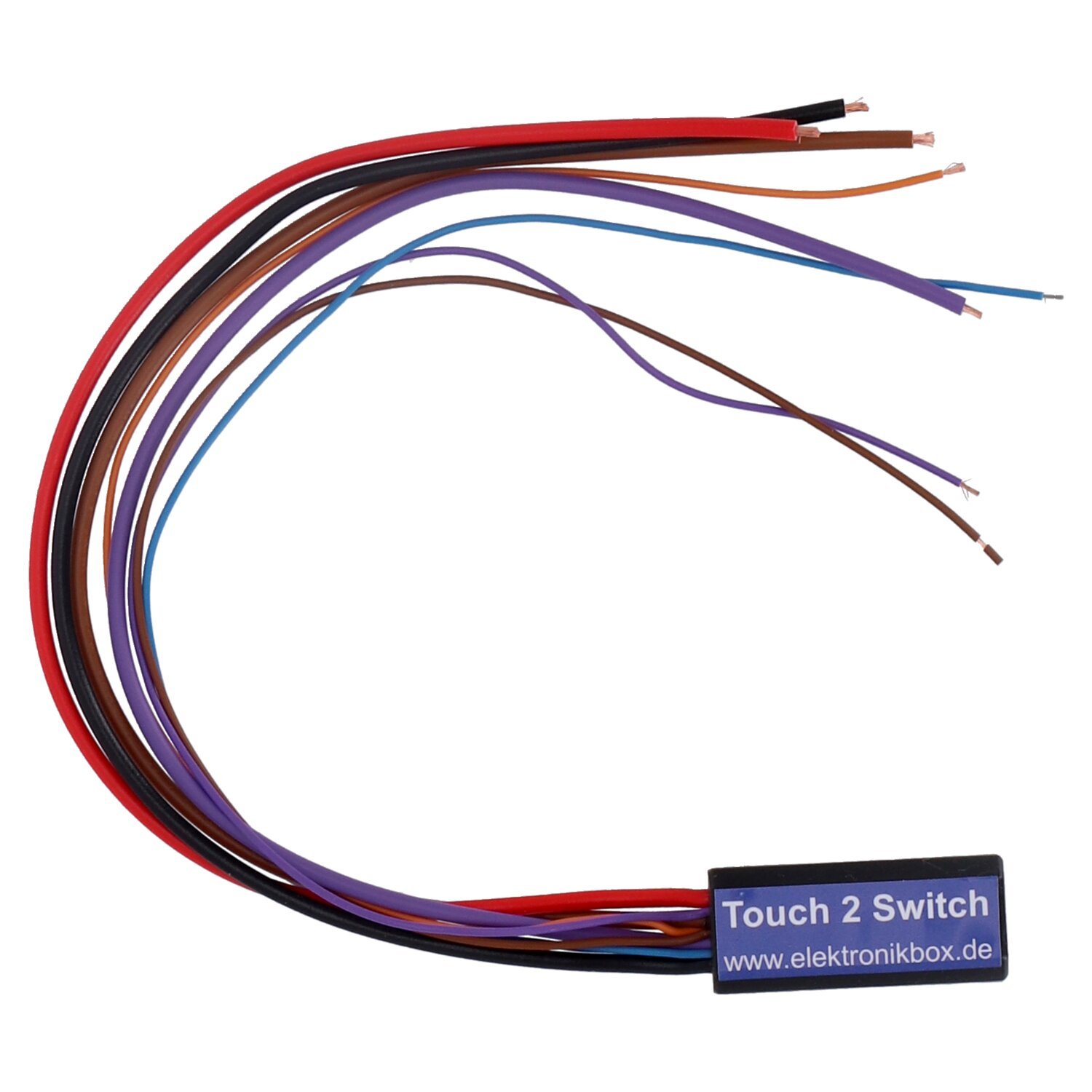

Axel Joost Elektronik, Touch 2 Switch. 2 channel relay

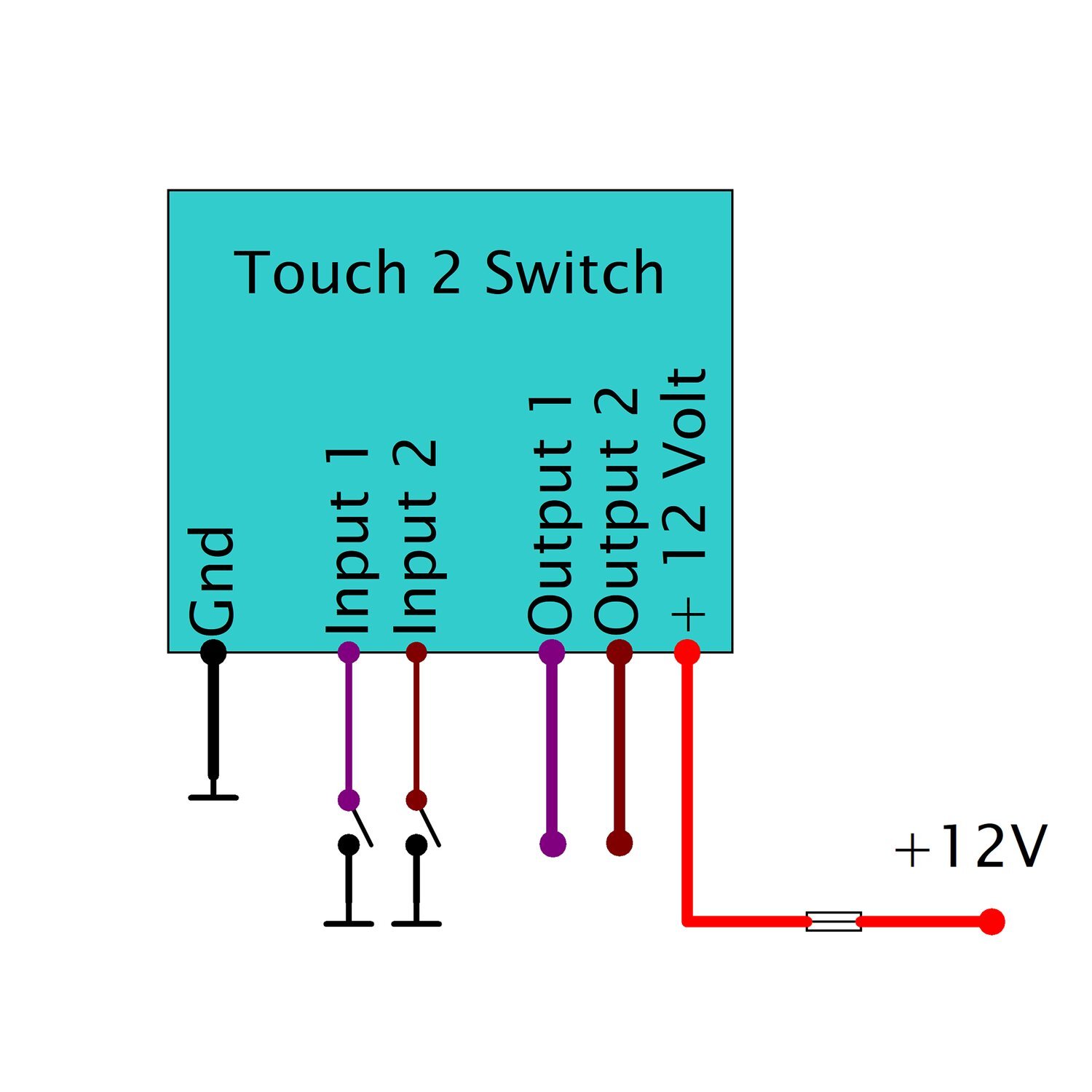

Perfect to switch lights high-low, on-off, ignition on-off, handlebar grip heating etc. This Axel Joost Touch 2 Switch is a 2 channel power relay that is controlled by 2 momentary push buttons. Every press on a button will toggle the corresponding output between on and off, no matter if they are wired to plus or minus. Or use the module as a standard (low beam /high beam) headlamp relay. Just wire the 2 thin input cables together to one push button. The first press on the push button will switch on output 1 (low beam). Every further press on the button toggle the between 2 outputs. The outputs can handle 70 Watt peak and 50 Watt continuous load. The module fits inside almost every handlebar due to its small size.
- 2 channel relay
- Pushbutton controlled on-off switching
- Dimensions: 38 mm x 16 mm x 11 mm
- Body material: ABS with waterproof poured 2k epoxy resin
- Input voltage range: 6 - 18 Volt

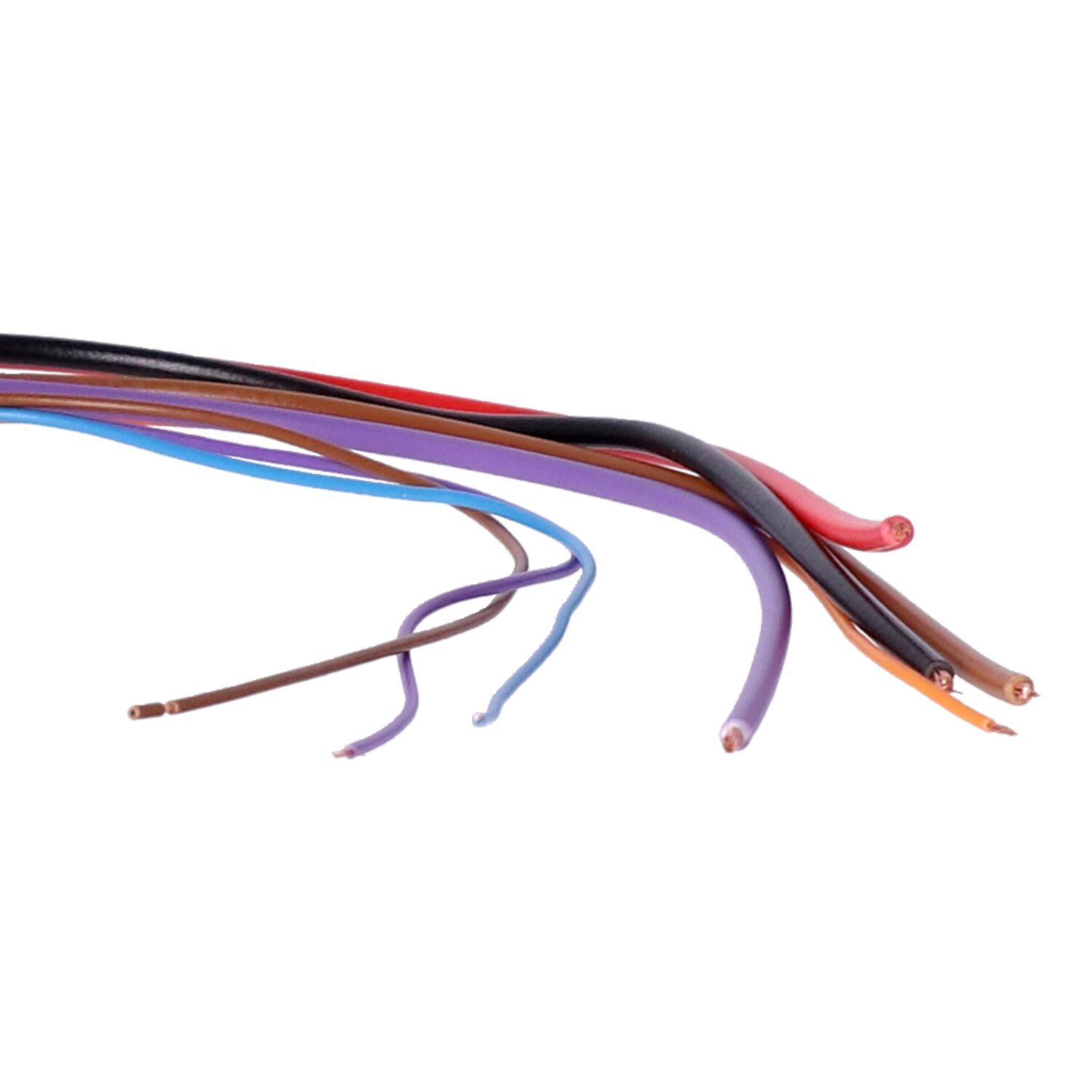

- Connections: Inputs 0.14 mm², Outputs 0.75 mm²
- Maximum current: 7 Ampere / 70 Watt per output
- Maximum ambient temperature: 80 degrees Celsius
