KOSO, HD-03 8-color 4-piece gauge kit, Black

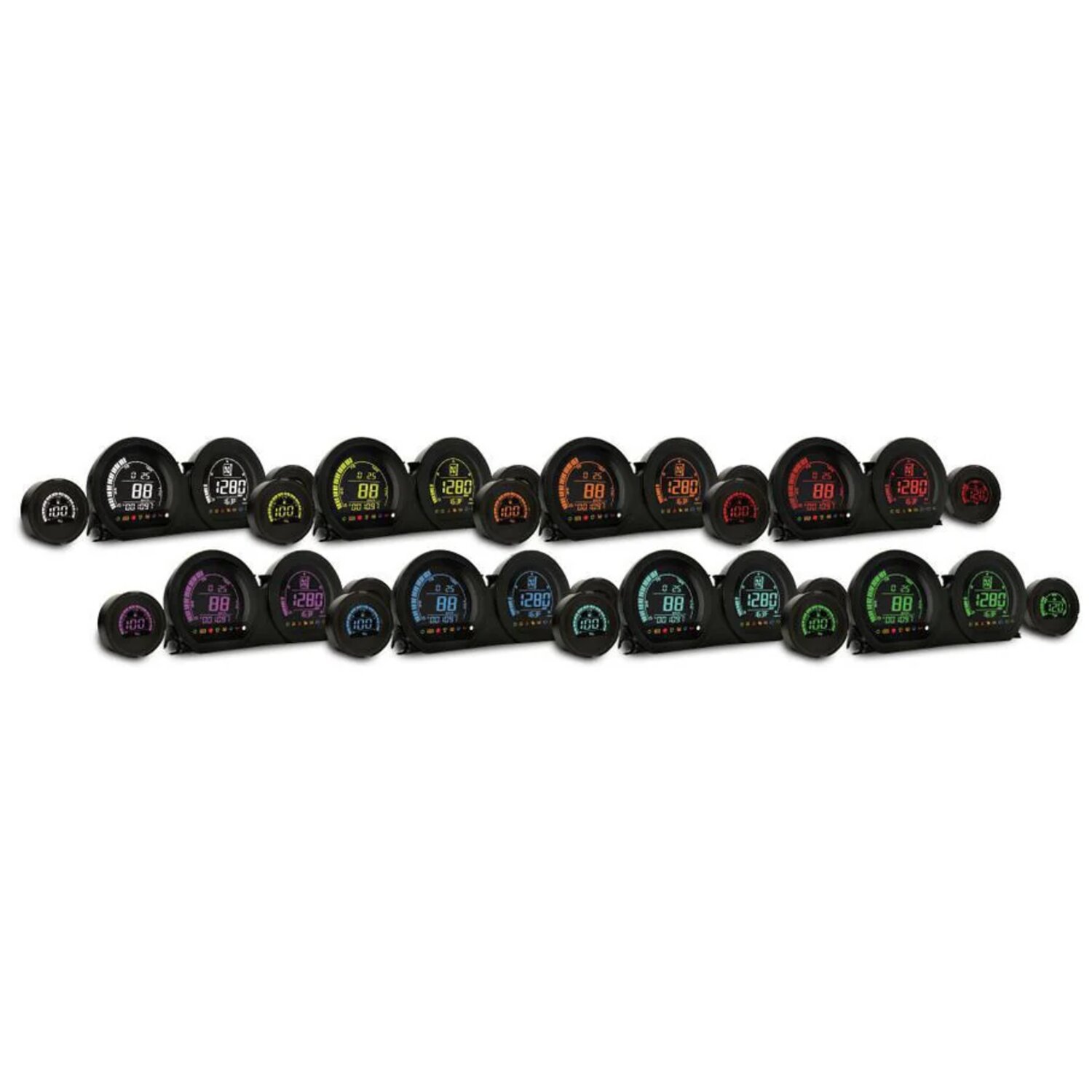

ABE approved. Plug & play replacement for the OEM instruments. Plug OEM connectors into instruments and install into the fairing. Ready! 8 display color options and 5 intensity levels for the digits and graphics in each individual instrument. Once the ignition is off, all instruments are completely black for a great custom look. This kit includes a 4" speedometer, a 4" tachometer with gear indicator, a 2" oil temperature gauge, and a 2" fuel gauge.
- 8 display color options: White, yellow, orange, red, purple, blue, light blue, green
- 12V DC
- Speedometer: 0 to 299 km/h (0 to 199 mph)
- Display refresh rate: <0.5 seconds
- Overspeed warning setting: 30 to 299 km/h (19 to 199 MPH). When the set value is reached, the warning lamp lights up
- Maximum speed record: 0 to 299 km/h (mph)
- Odometer display range: 0 to 999,999 km (miles) displays per 1 km (miles)
- Tripmeter A/B: 0 to 9,999.9 km (miles)
- Oil change interval/maintenance: off - 300 - 10,000 miles or 500 - 16,000km adjustable. Adjustable per 100 miles/km. Counts down as the number of miles/km increase. From 0 km/miles the warning light flashes and the device counts down to maximum minus 999 km/miles. Manual reset
- Gear indicator: Off, N, 1, 2, 3, 4, 5, 6
- Tachometer: 0 to 9,990 rpm. Displays per 10 rpm
- Shift light: : 2,000~8,000 rpm, per 100 rpm adjustable. Light turns on when set RPM is reached
- Engine temperature: -40 to 400 °C / -40 to 572 °F
- Fuel meter: R: 0 ~ 100 %
- Fuel warning setting 1-HD Standard: Flashing LCD when > 211 Ω, Off LCD when < 187 Ω
- Fuel warning setting 2-HD Customize: Flashing LCD when < 20%, Off LCD when > 30%,
- Fuel tank volume: OFF / 1 ~ 9.9 US gallons
- Average fuel consumption: OFF / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
- Fuel 'remaining distance': LCD shows 'LO RNG' and flashes as a warning when remaining range is less than 16 km (10 miles)
- Clock: 12h / 24h
- Oil Temperature Gauge: 0 to 400°F (32 to 248°C), displays per 1 F° (1 °C)
- Maximum oil temperature record (storage): 0 to 400°F (32 to 248°C)
- Volt meter range: DC 8 to 18V
- Brightness digits: 5 levels
- Color digits / graphics: 8 colors, white, yellow, orange, red, purple, blue, light blue, green
- Works from -10°C to 60°C
- JIS D 0203 (S2) standard specified
- Weight speedometer & tachometer: 286 gram
- Weight oil temp.: 81 gram
- Weight fuel gauge: 81 gram
- Indicator lights: Turn signal / Water temp / Oil pressure / Photometric sensing / Warning light/ Check engine / High Beam / Fog light / Volt / Traction control / Cruise / ABS / Rain mode / Vehicle hold control / Fuel level / Low tire pressure / Security light
