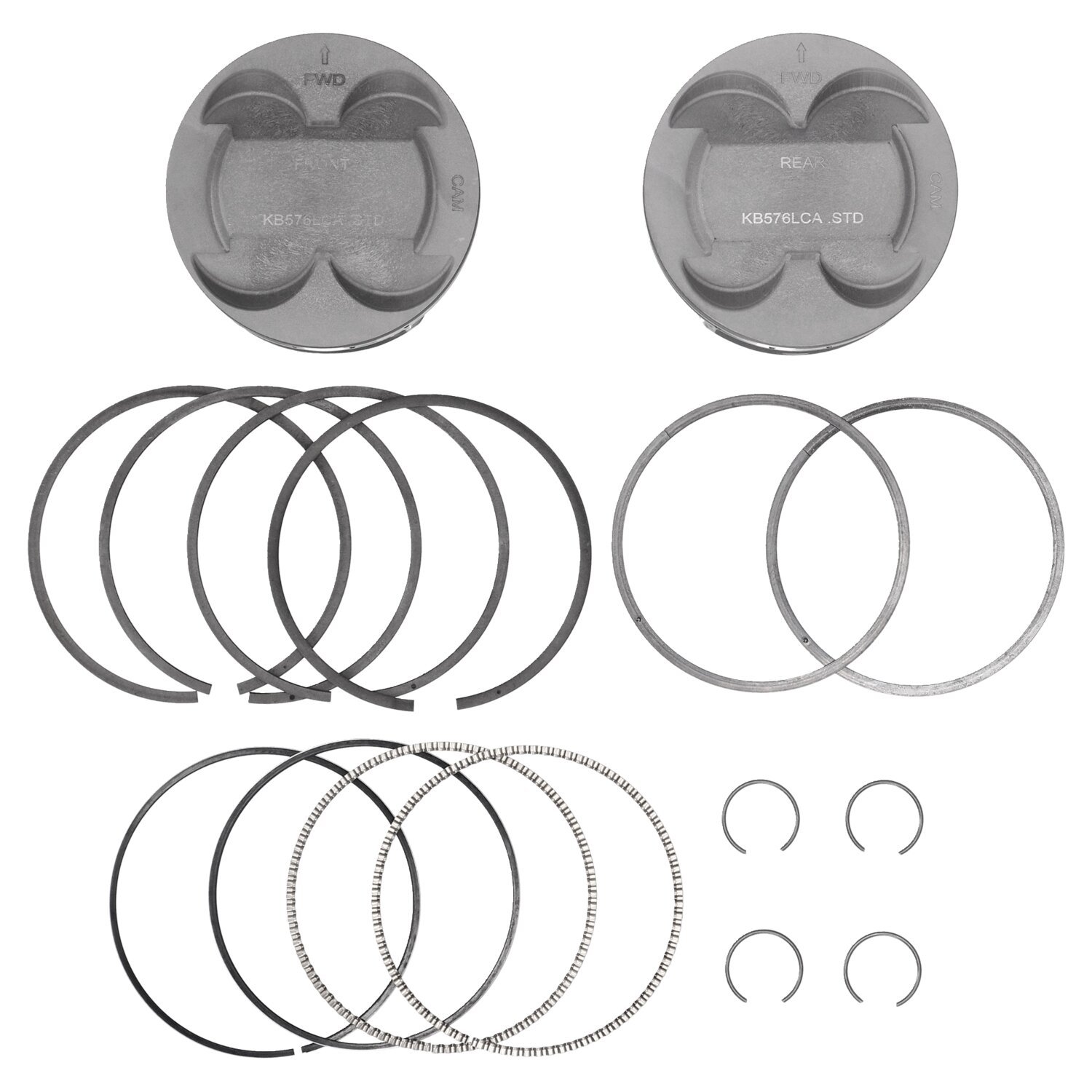

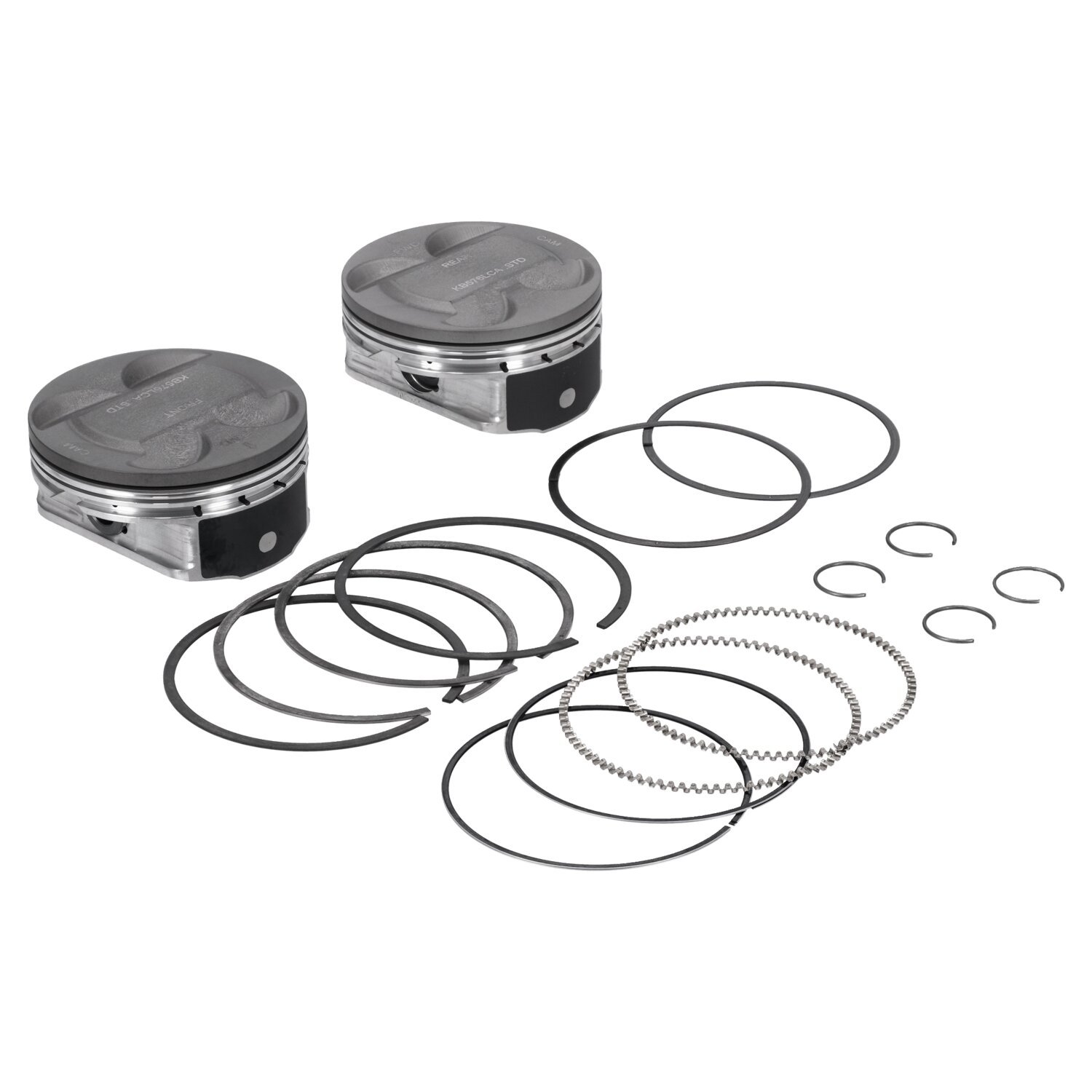

KB, M8 107" to 124" big bore conversion piston kit. STD
This item is available from the supplier. We will confirm the delivery time before payment.
Request price
Thank you! We'll respond within 1 business day.
Description
Forged Super Duty series for the Milwaukee Eight engine. With hard anodized crown and top ring groove to reflect heat and prevent ring to groove 'micro-welding'. The Line2Line abradable self-lubricating powder coating technique allows zero tolerance installation, final tolerance will be 0.003". The piston creates its own perfect tolerance during run-in, the coating automatically gives the tightest possible & perfect piston to cylinder fit for no piston rock and best possible ring seal.
Note: Fits 107" M8 engines. Works with stock 4.375" stroke and stock unmodified heads. Aftermarket 4.25" bore cylinders are required.
- 11.4:1 CR
- Piston weight: OEM
- Engine displacement: 124"
- Bore: 4.25"
- Stroke: 4.375" (stock 107" engine)
- Ring pack: 1.5mm, 1.5mm, 3.0mm
- Top land: .230
- Pin number: .9270x2.250x.180-SCR415H
- Pin type: Floating
- Pin diameter: .927"
- Compression height: 1.155"
- Crown Type: Dome
- Crown (cc): -2cc
- Alloy: Forged 4032 Alloy
Specifications
